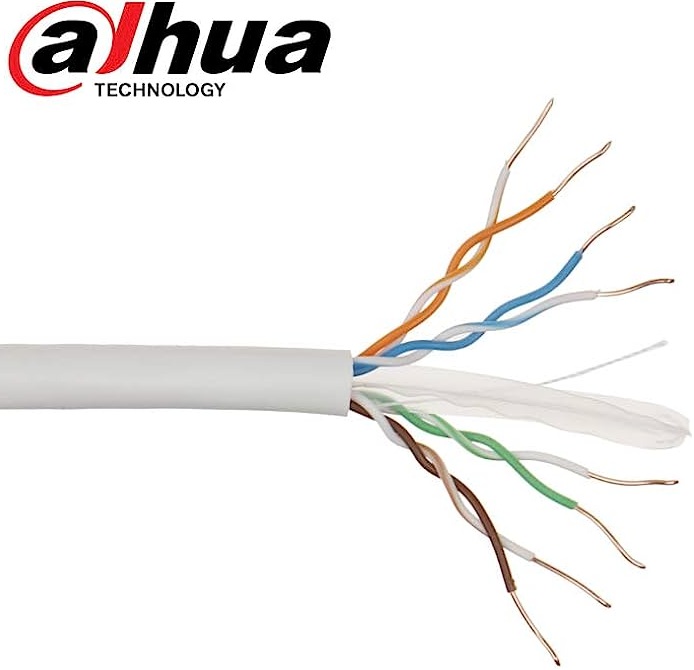

Conductor
Material: CCA(Copper content 22%–31%)
Diameter: 0.57 mm ± 0.01 mm
American Wire Gauge: 23AWG
Insulation: Material HDPE
Min. Average Thickness 0.21 mm
Diameter: 1.02 mm ± 0.06 mm
Color (4 Pairs)
Separator Material PE
Specification Translucent 4.5 × 0.4 mm
Rip Cord Material Polyester
Specification 500D Sheath
Material PVC Average Thickness 0.5 mm
Diameter 6.5 mm ± 0.3 mm
Color Orange
Electrical: Max. DC Resistance of a Single Conductor 11.5?/100 m
Min. Insulation Resistance 5000M?·km
Max. DC Resistance Unbalance
2% (pair intra), 4% (pairs inter)
Dielectric Strength
No breakdown with 1KV DC for 1 min
Transmission: Characteristic Impedance 100 ± 15?
Near End Cross Talk ?39.30 dB/100 m@250 MHz
Max. Attenuation 34.8 dB/100 m@250 MHz
Return Loss ?17.3 dB/100 m@250 MHz
Mechanical Tensile Strength Sheath?13.5 MPa, insulation?16 MPa
Elongation at Break Sheath?150%, insulation?300%
Installation Bending Radius >8 times of outer cable diameter
Conductor Elongation at Break ?10%
